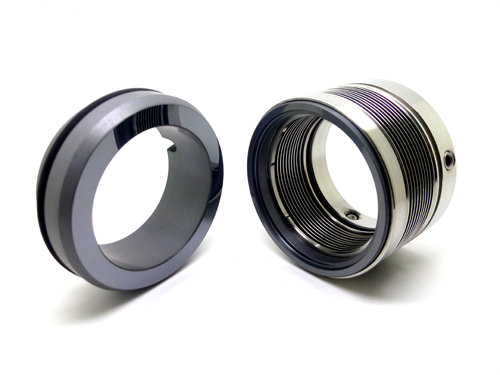

MFL85N Replacement Mechanical Seal Size 35 mm.

Description แมคคานิคอลซีล MFL85N Size 35 mm. Sealwise Type : PJ08-35 ขนาดเพลา 35 มิลลิเมตร วัสดุ หน้าสัมผัส          : Silicon Carbide – Silicon Carbide โอริง                              : Viton วัสดุโลหะ                    : Stainless Steel 316 วัสดุ เมทัล เบลโล่    : SUS316L Sealwise Type :PJ08-35 Size : 35 mm. Material Seal Face            : Silicon Carbide – Silicon Carbide O-ring                  : Viton Metal Parts        : Stainless Steel SUS304 Bellows              : SUS316L It is equivalent to EagleBurgmann MFL85N. Features  Welded metal bellows construction, Balanced, Independent of the direction of rotation  Bellows not only used as an elastic component but also has good torque transmission effect   No dynamically loaded O-Ring   Dimensional data conform with DIN24960 standard Recommended Applications   Refining technology, Oil and gas industry   Process industry   Pumps   Special Rotating Equipment. Operating range Shaft diameter    :  from 18 mm. to 100mm (0.750” …4.000”) Pressure                :  MAX 2.5Mpa（362.5psi） Temperature       :  -20 °C to 220 °C(-4°F to 428°F) Sliding velocity  :  Vg≤15m/s（49.2ft/m） Notes: The range of pressure, temperature and sliding velocity is depend on seals combination materials
